Scrapy+GitHubActions部署云爬虫

· 阅读需 7 分钟
Skyone
科技爱好者

为了学习GitHub Actions的基本使用,写一个爬虫练练手

这个爬虫用于下载哔哩哔哩相簿的图片

该文章分为三步:

  • 写爬虫
  • 写workflows文件
  • 上传代码到GitHub

写一个scrapy爬虫

创建项目

新建一个项目文件夹,打开CMD并切换到该文件夹,输入以下命令初始化git:

git init

使用scrapy新建项目并新建爬虫:

scrapy startproject bili bilibili.com
cd bili
scrapy genspider picture

创建项目完毕,下面使用IDE打开项目文件夹吧~

我使用的是Pycharm

储存图片信息的class

打开 bili/items.py ,不出意外的话,这里已经有一个 BiliItem(scrapy.Item) 类了

我们将其改为:

import scrapy


class BiliItem(scrapy.Item):
url = scrapy.Field() # 图片连接
title = scrapy.Field() # 图片标题
author = scrapy.Field() # 作者
id = scrapy.Field() # 图片id
uid = scrapy.Field() # 作者uid
extension = scrapy.Field() # 图片拓展名

分析哔哩哔哩API

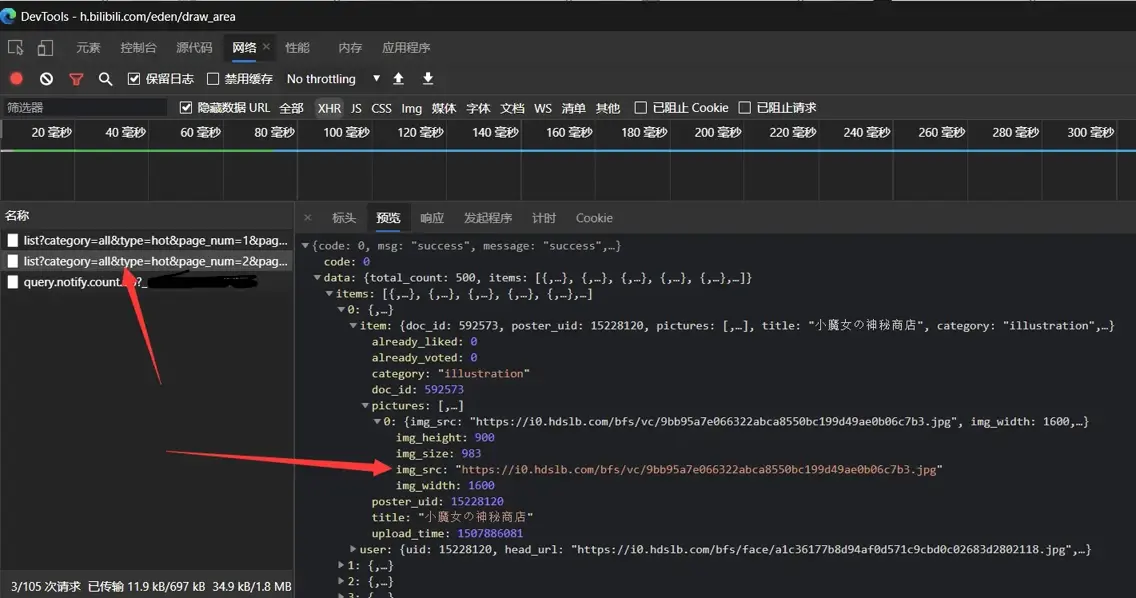

打开哔哩哔哩相簿,开启检查元素的网络那一栏,发现每加载一次都会有一个get请求:

请求图片

很好,正是我们想要的,多次尝试,很容易分析出来:

GET https://api.vc.bilibili.com/link_draw/v2/Doc/list?category=all&type=hot&page_num=0&page_size=20
Accept: application/json

返回:

GET https://api.vc.bilibili.com/link_draw/v2/Doc/list?category=all&type=hot&page_num=0&page_size=20

HTTP/1.1 200 OK
Date: Sun, 21 Mar 2021 06:30:48 GMT
Content-Type: application/json
Transfer-Encoding: chunked
Connection: keep-alive
L: v
X-Trace-Id: 29bd4f5ef5186679
Http-Status-Code: 200
Bili-Status-Code: 0
Server: swoole-http-server
Set-Cookie: l=v
Expires: Sun, 21 Mar 2021 06:30:47 GMT
Cache-Control: no-cache
X-Cache-Webcdn: BYPASS from hw-sh3-webcdn-08

{
"code": 0,
"msg": "success",
"message": "success",
"data": {
"total_count": 500,
"items": [
{
"user": {
"uid": 21690338,
"head_url": "https://i1.hdslb.com/bfs/face/b6a132c21e444401228099c8cc07edab810bc9db.jpg",
"name": "ZWPAN盼"
},
"item": {
"doc_id": 1085297,
"poster_uid": 21690338,
"pictures": [
{
"img_src": "https://i0.hdslb.com/bfs/album/2785de69bb019f85c88ee0d9681468c779e3950f.jpg",
"img_width": 3029,
"img_height": 9506,
"img_size": 6425
}
],
"title": "108个小电视表情",
"category": "illustration",
"upload_time": 1512023535,
"already_liked": 0,
"already_voted": 0
}
}, {
"_": "太多了,就不列举了"
}
]
}
}

Response code: 200 (OK); Time: 490ms; Content length: 12879 bytes
  • URLhttps://api.vc.bilibili.com/link_draw/v2/Doc/list

  • methodGET

  • params

  • category

图片的类型,选项如下

  • all:所有类型
  • illustration:插画
  • comic:漫画
  • draw:其他
  • type

排名规则。选项如下:

  • hot:按热度排序
  • new:按时间排序
  • page_num

页数,从0开始

  • page_size

每页图片数

写爬虫

先在项目的根目录创建一个配置文件setting.py

# picture settings

PICTURE_MAX_PAGE = 20
PICTURE_SLEEP_TIME = 0.5
PICTURE_CATEGORY = "all"
PICTURE_TYPE = "hot"
  • PICTURE_MAX_PAGE

爬的页数,每页20个

  • PICTURE_SELLP_TIME

每爬一张图间隔的时间

  • PICTURE_CATEGORY

要爬的图片的类型,选项如下

  • all:所有类型

  • illustration:插画

  • comic:漫画

  • draw:其他

  • PICTURE_TYPE

排名规则。选项如下:

  • hot:按热度排序
  • new:按时间排序

打开bili/spider/picture.py

导入一些库

import json
import scrapy
import time
import setting
from bili.items import BiliItem

改写class PictureSpider(scrapy.Spider):

我们要先从 https://h.bilibili.com/ 开始爬,从而免去设置 Referer

start_urls = ['https://h.bilibili.com/']

再接着循环爬取刚才分析的链接即可,记住要构造请求并设置回调函数哦!

def parse(self, response, **kwargs):
for i in range(setting.PICTURE_MAX_PAGE):
yield scrapy.Request(
'https://api.vc.bilibili.com/link_draw/v2/Doc/list?page_size=20'
'&type=' + setting.PICTURE_TYPE +
'&category=' + setting.PICTURE_CATEGORY +
'&page_num=' + str(i),
callback=self.picture_info,
dont_filter=True
)

def picture_info(self, response, **kwargs):
data = json.loads(response.text)
for item in data["data"]["items"]:
img = BiliItem()
img["url"] = item["item"]["pictures"][-1]["img_src"]
img["title"] = item["item"]["title"]
img["id"] = item["item"]["doc_id"]
img["author"] = item["user"]["name"]
img["uid"] = item["user"]["uid"]
img["extension"] = img["url"].split('.')[-1]
yield img
time.sleep(setting.PICTURE_SLEEP_TIME)

bili/spiders/picture.py完整代码

import json
import scrapy
import time
import setting
from bili.items import BiliItem


class PictureSpider(scrapy.Spider):
name = 'picture'
allowed_domains = ['bilibili.com']
start_urls = ['https://h.bilibili.com/']

def parse(self, response, **kwargs):
for i in range(setting.PICTURE_MAX_PAGE):
yield scrapy.Request(
'https://api.vc.bilibili.com/link_draw/v2/Doc/list?page_size=20'
'&type=' + setting.PICTURE_TYPE +
'&category=' + setting.PICTURE_CATEGORY +
'&page_num=' + str(i),
callback=self.picture_info,
dont_filter=True
)

def picture_info(self, response, **kwargs):
data = json.loads(response.text)
for item in data["data"]["items"]:
img = BiliItem()
img["url"] = item["item"]["pictures"][-1]["img_src"]
img["title"] = item["item"]["title"]
img["id"] = item["item"]["doc_id"]
img["author"] = item["user"]["name"]
img["uid"] = item["user"]["uid"]
img["extension"] = img["url"].split('.')[-1]
yield img
time.sleep(setting.PICTURE_SLEEP_TIME)

下载图片

图片链接已经使用上面的picture_info()方法获取了,下面使用BiliPipeline管道下载图片

打开bili/pipelines.py

由于scrapy自带的图片下载器个人觉得使用起来太麻烦,这里直接用requests库就好

import requests
from os import path


class BiliPipeline:
def process_item(self, item, spider):
name = str(item["id"]) + '.' + item["extension"]
res = requests.get(item["url"])
with open(path.join(path.join(path.abspath('.'), 'image'), name), 'wb') as file:
file.write(res.content)
print(name)
return item

启用管道

打开bili/settings.py

找到以下内容并取消注释

ITEM_PIPELINES = {
'bili.pipelines.BiliPipeline': 300,
}
提示

在运行阶段为了减少不必要的log提示,可以在在里面添加

LOG_LEVEL = "WARNING"

本地启动爬虫测试

启动爬虫

# 切换到项目根目录
scrapy crawl picture

pycharm调试爬虫

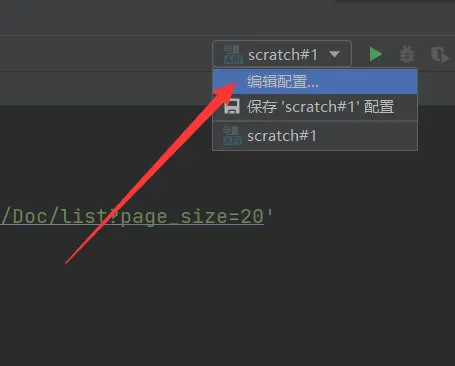

点击右上角“编辑配置”

编辑配置

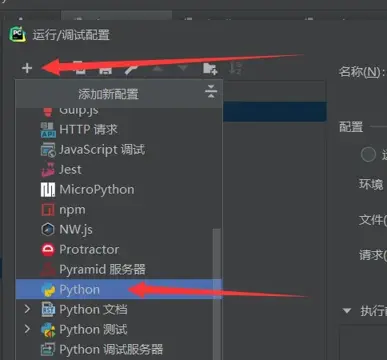

添加配置,选择python

编辑配置

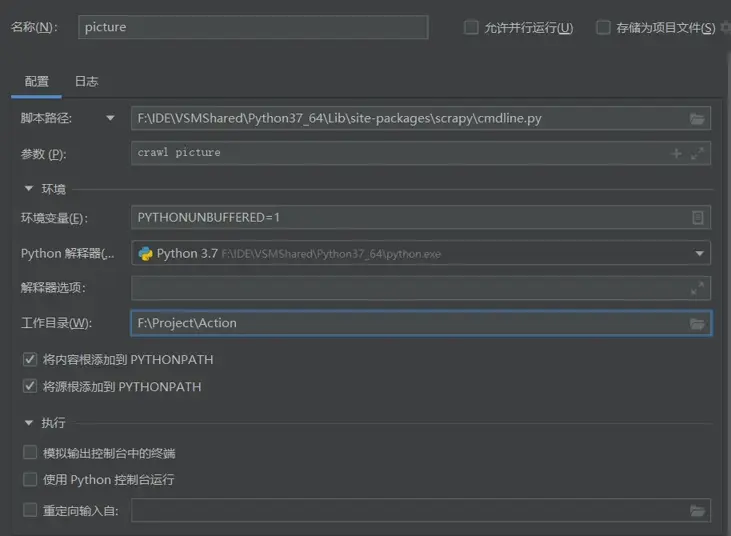

配置如下

编辑配置

  • 脚本路径为 python安装目录\Lib\site-packages\scrapy\cmdline.py
  • 参数为 crawl 爬虫名
  • 工作目录为项目根目录

然后就可以愉快的打断点调试了 JetBrains NB

写workflows文件

在项目根目录创建:.github/workflows/blank.yml

直接复制粘贴即可,有时间我会另写一篇入门GitHub Actions的文章,可能会鸽已经鸽🕊了。。。其实网上有很多这样的文章,例如:阮一峰的网络日志

name: Spider

on:
workflow_dispatch:

jobs:
spider:
runs-on: ubuntu-latest
steps:
- name: checkout
uses: actions/checkout@master

- name: 'Set up Python'
uses: actions/setup-python@v1
with:
python-version: 3.7

- name: Run a single-line script
run: |
pip install requests
pip install lxml
pip install scrapy
scrapy crawl picture

- name: Upload artifact
uses: actions/upload-artifact@master
with:
name: img
path: image

部署到GitHub Actions

在Github上新建仓库,将代码推送到该仓库里,Git三部曲:

git add .				# 添加
git commit -m "init" # 提交
git push # 推送

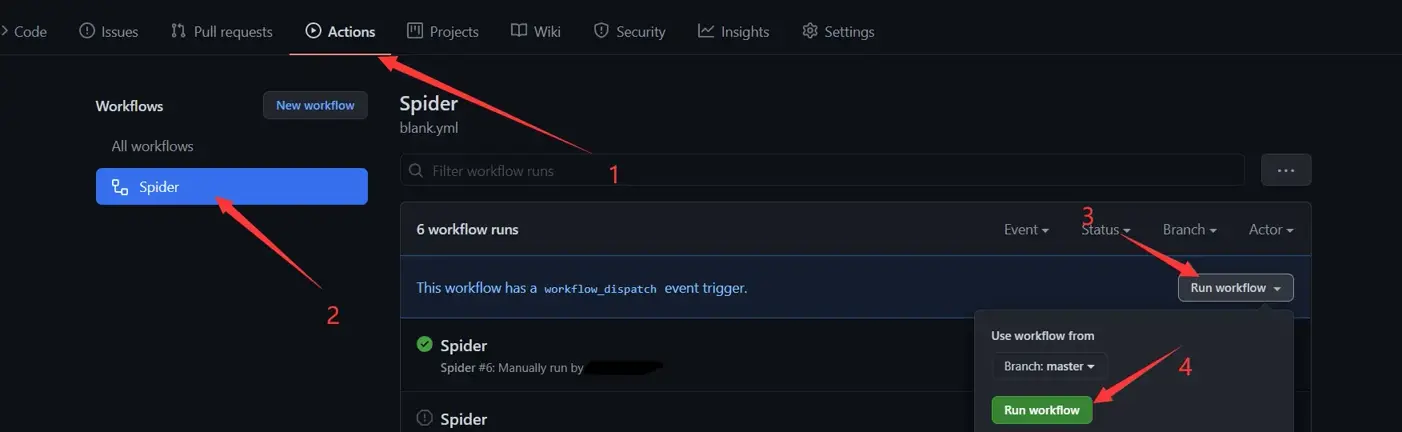

打开GitHub仓库网页,依次点击:

action

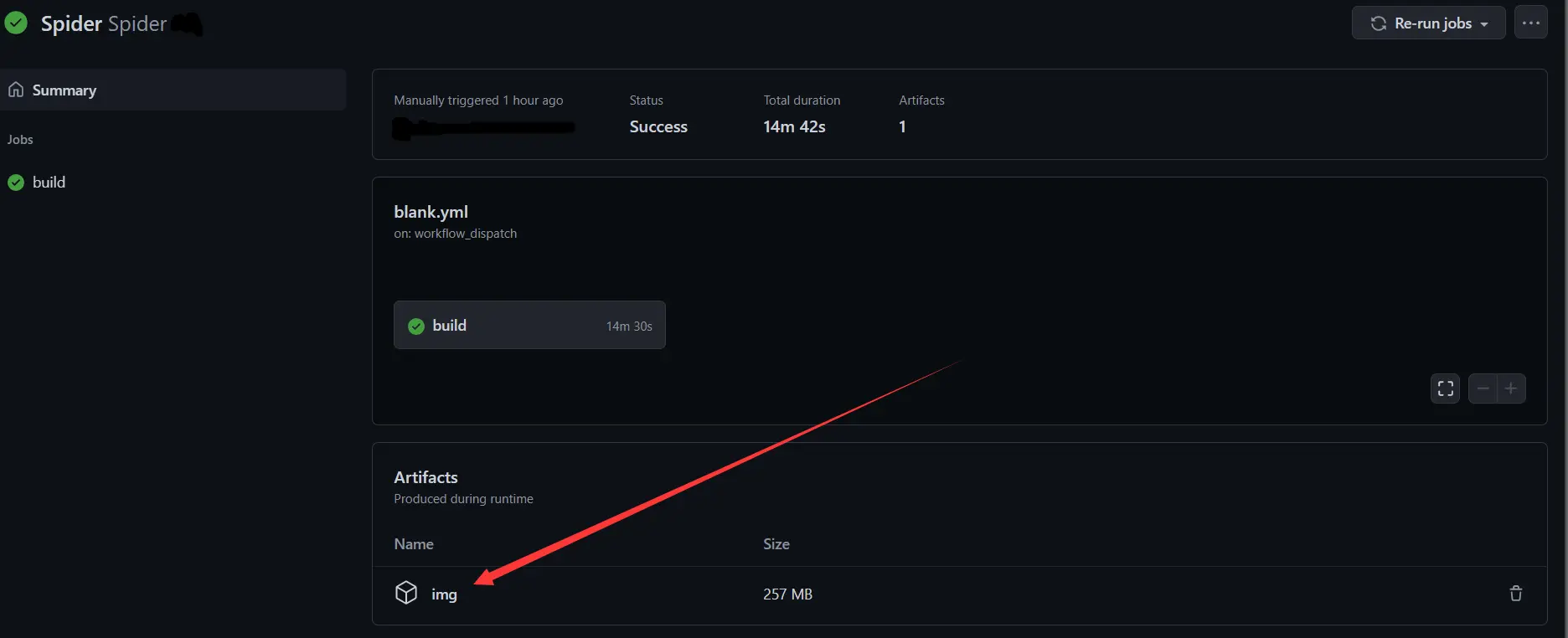

等待一小会,不出意外的话,爬虫的结果就显示出来了,点击下载即可

下载
